Starter Kit
Starter Kit是为AliOS Things量身打造的开发板,提供了丰富的板上资源,包含板级传感器,LCD屏幕(240*240),Audio,板上WiFi模块。AliOS Things是 AliOS 家族旗下的、面向IoT领域的、高可伸缩的物联网操作系统,详情请见 AliOS Things
AliOS Things Starter Kit板上集成了ST-LINK V2,用户无需额外花费外接调试器。
围绕AliOS Things Starter Kit阿里还提供了一套免费,极简的开发工具alios-studio,基于该工具用户可以完成从编译到烧录到调试的完整的IDE开发环境。
详见:使用 AliOS Studio 开发 Starter Kit
特性
MCU: STM32L433CCT6, 48LQFP, Cortex-M4, 80MHz
Memory: 256KB Flash, 64KB RAM
USB: micro-USB, 5V Power Supply
Sensors: Accelerator, Light-Sensor
LCD: 240*240 Pixels, 1.3" TFT
Key: 4 User Buttons
LED: 1RGB LED, 2 Status LED
Audio: Headphone, Mic, Codec
WiFi Module: 802.11 b/g/n, Easy-Link
On-board ST-LINK/V2-1 debugger
OS: AliOS Things

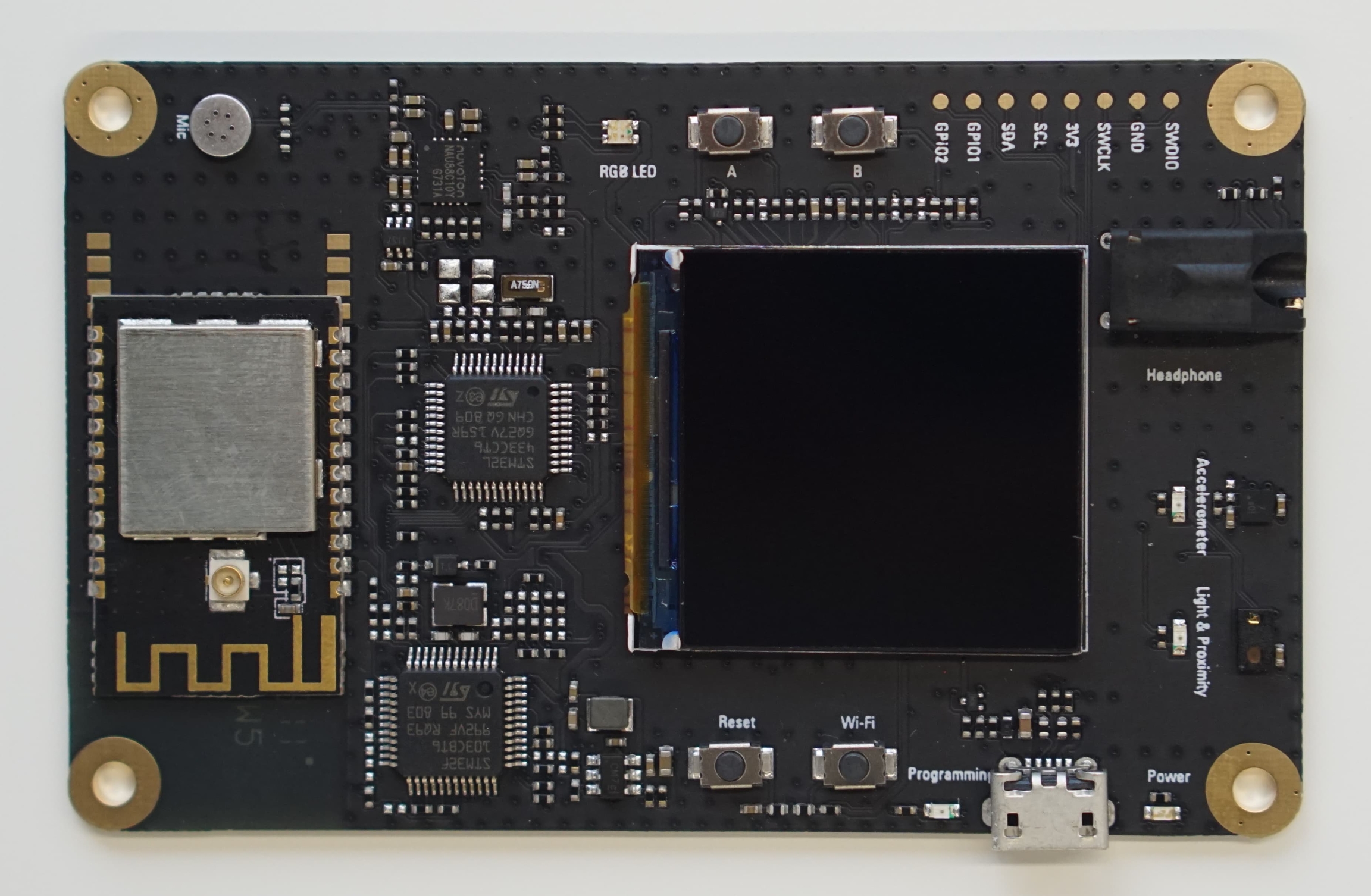

产品图片
详细参数
项目 | 描述 | 规格 | |
CPU information | CPU | STM32L433CCT6 ARM Contex-M4,80MHz | |
Memory | 64KB SRAM,256kB internal Flash | ||
Display | LCD | 1.3', 240*240, SPI | |
LED | 1xRGB, 1 Power LED(Green), 1 Program LED(orange), 2 status LED(Orange) | ||
Sensors | Accelerator | Support | |
Light-Sensor | Support | ||
Power features | Power Interface | microUSB | |
Working Voltage | DC 4.2-12V (typical5V) | ||
Audio | Codec | I2S, | |
Speaker | 0.5-1W | ||
Mic | Analog Differential Mic | ||
Interface | USB | USB2.0, for download and debug | |
Uart | for Wifi | ||
I2C | for sensors | ||
SPI | for LCM | ||
Key | Reset Key, Function Key x 3 | ||
Wifi Module | Protocol | 802.11b/g/n | |
SOC | Contex M4 100MHz, 128kB RAM | ||
512kB on-chip flash + 2MB on board flash | |||
Operating Voltage | DC 3-3.6V ( (typical3.3V)) | ||
Environmental Characteristics | standard working temperature | -10 ℃~+45℃ | |
Operating humidity | 5%~95% (non-condensing) | ||
Dimension | 70*80mm | ||
OS | AliOS Things | ||
Application | Wireless control, Wireless sensor, Audio decode, G-sensor Games... |

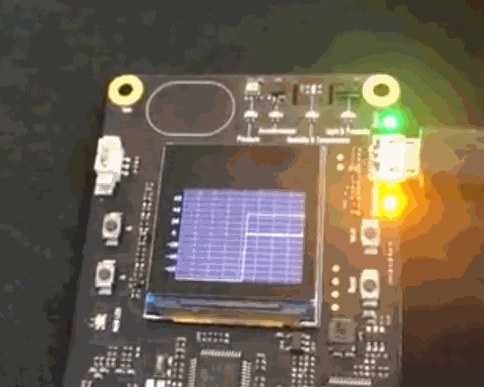

GUI 示例
